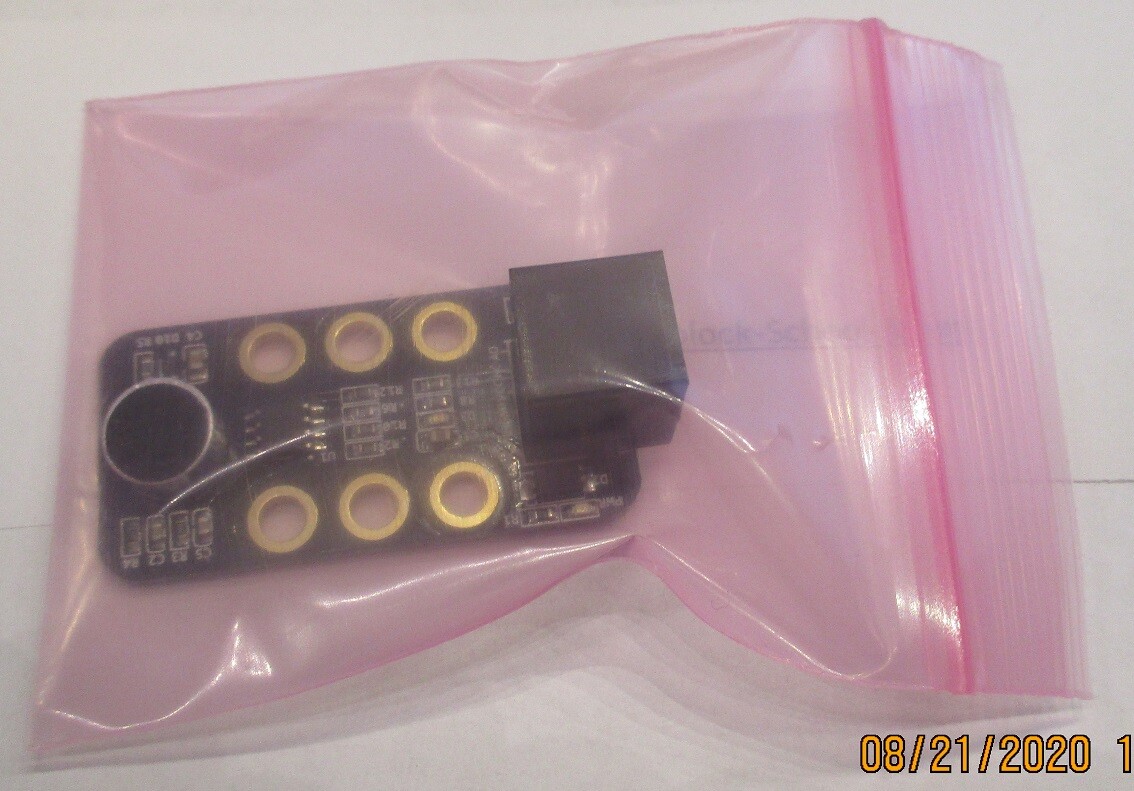

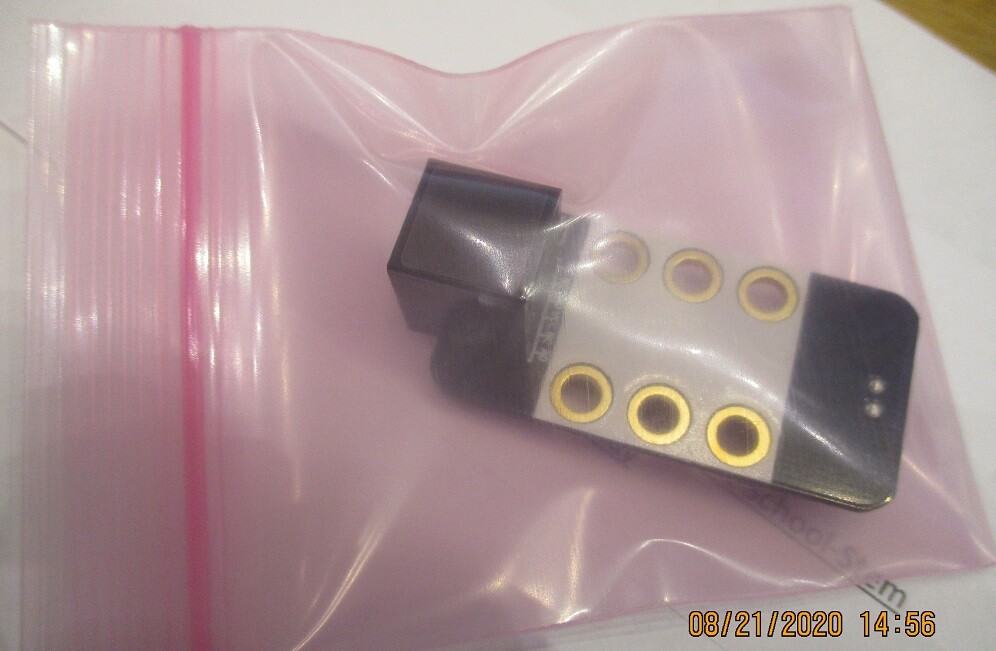

Makeblock Me Sound Sensor Makeblock Arduino PI Compatible Open Source
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Type | Makerspace |
| Brand | Makeblock |
| Platform | Arduino Makeblock PI |
Based on a microphone, the Me Sound Sensor can be used to detect the ambient sound intensity. Its main component is LM2904 low-power amplifier. The module can be used to build some interactive projects, such as the voice operated switch, and the dance-following robot. Its black ID means that it has an analog port and should be connected to the port with black ID on Makeblock Orion. Technical specifications ● Operating voltage: 5V DC ● Microphone sensitivity (1 Khz): 50-54dB ● Microphone impedance: 2.2 KΩ ● Microphone frequency: 16-20 KHz ● Microphone SNR: 54 db ● Control mode: Single analog port output ● Maximum current: 0.5mA ● Type of power amplifier: LM2906 ● Module size: 51 x 24 x 18 mm (L x W x H) Functional characteristics ● Brightness of onboard LED indicates the intensity of sound ● High sensitivity to the sound ● White area of module is the reference area to contact metal beams ● Anti-reverse protection – connecting the power supply inversely will not damage IC ● Support mBlock GUI programming, and applicable to users of all ages ● Adopt RJ25 port for easy connection ● Provide pin-type port to support most development boards including Arduino series Shipped in resealable anti-static bag ideal for classroom use. See http://learn.makeblock.com/en/me-sound-sensor/ I have a large stock of Makeblock. I will be setting up more auctions as time permits. If you send me a note of what you need and quantity I can price it out for you and set up a listing if interested. I have Complete Classroom Setups or Maker Space stock available for immediate shipment. I have Ultimate Kits (orion based with blue work box ideal for students), Starter Robot Kits Infrared and Bluetooth. Inventor Kits. Scara MDrawBots both Versions. X-Y Plotter Kits. Laser Engraver Kits. Giraffe 3D Printer Kits. Huge stock of individual electronic modules, hardware, 0824, 0898, 2424, 0412 Beams of various lengths in addition to standard "kit sizes". Individual parts ie timing pulleys, belts, wheels, tracks, plates, brackets, bearings, fasteners, spacers, brass studs, shafts, couplers, sliders, motors, steppers, gripper, on and on. If you have kits missing parts chances are I stock them.
